Figure 7
Download original image

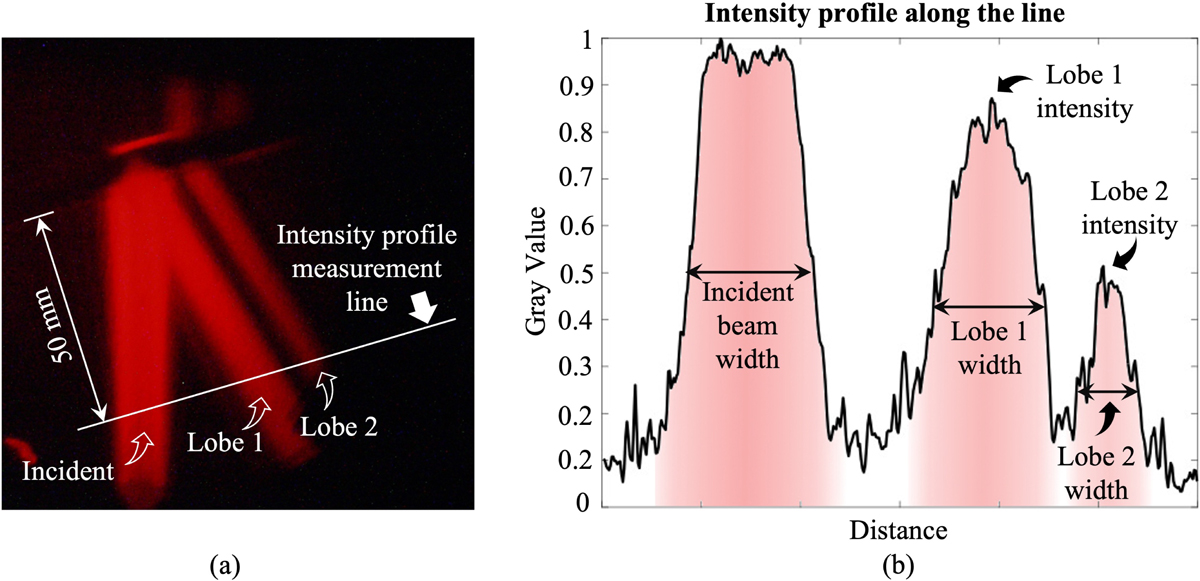

Illustrations: (a) Obtaining beam intensity profile on a line parallel to the glass surface at an offset of 50 mm. (b) Extracting beams’ relative intensities and widths, where the gray value in the vertical axis signifies the intensity of a pixel in the image. The width is taken at half of the corresponding beam’s maximum intensity (full width at half maximum, FWHM).
