Figure 4


Download original image

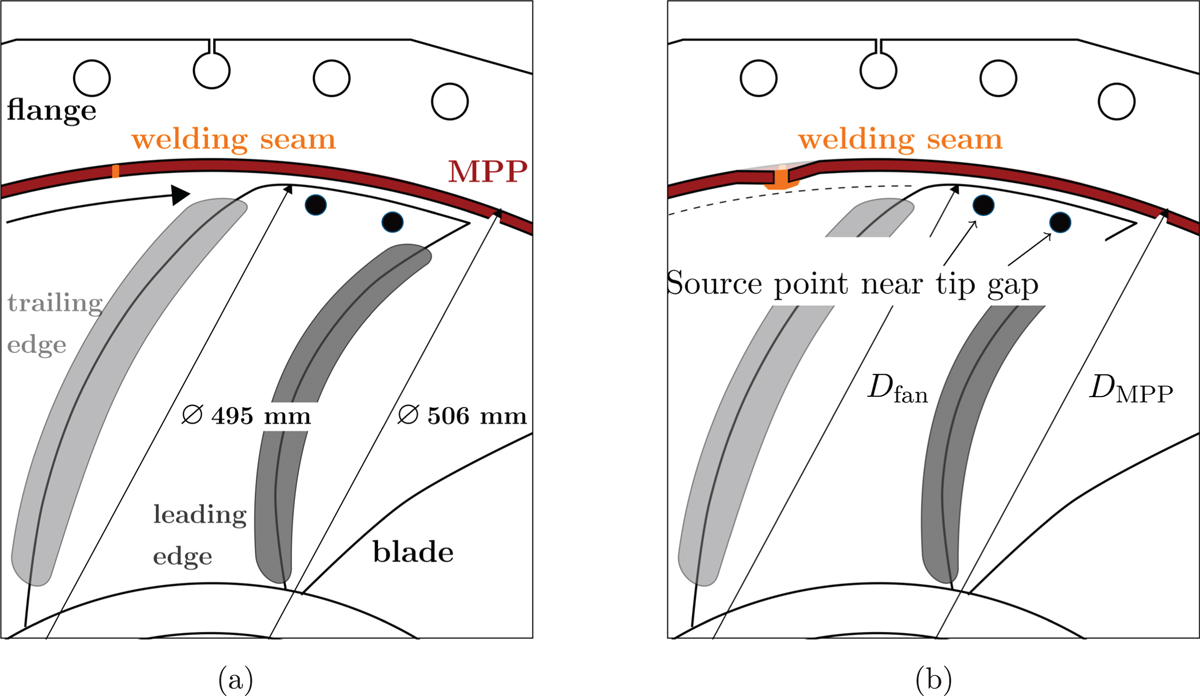

Dimensions and detail of the tip gap region of a fan with forward skewed blades (F); front view. (a) Ideal joint MPP sheet. (b) Constructed joint with a constricted tip gap; source points indicated.
