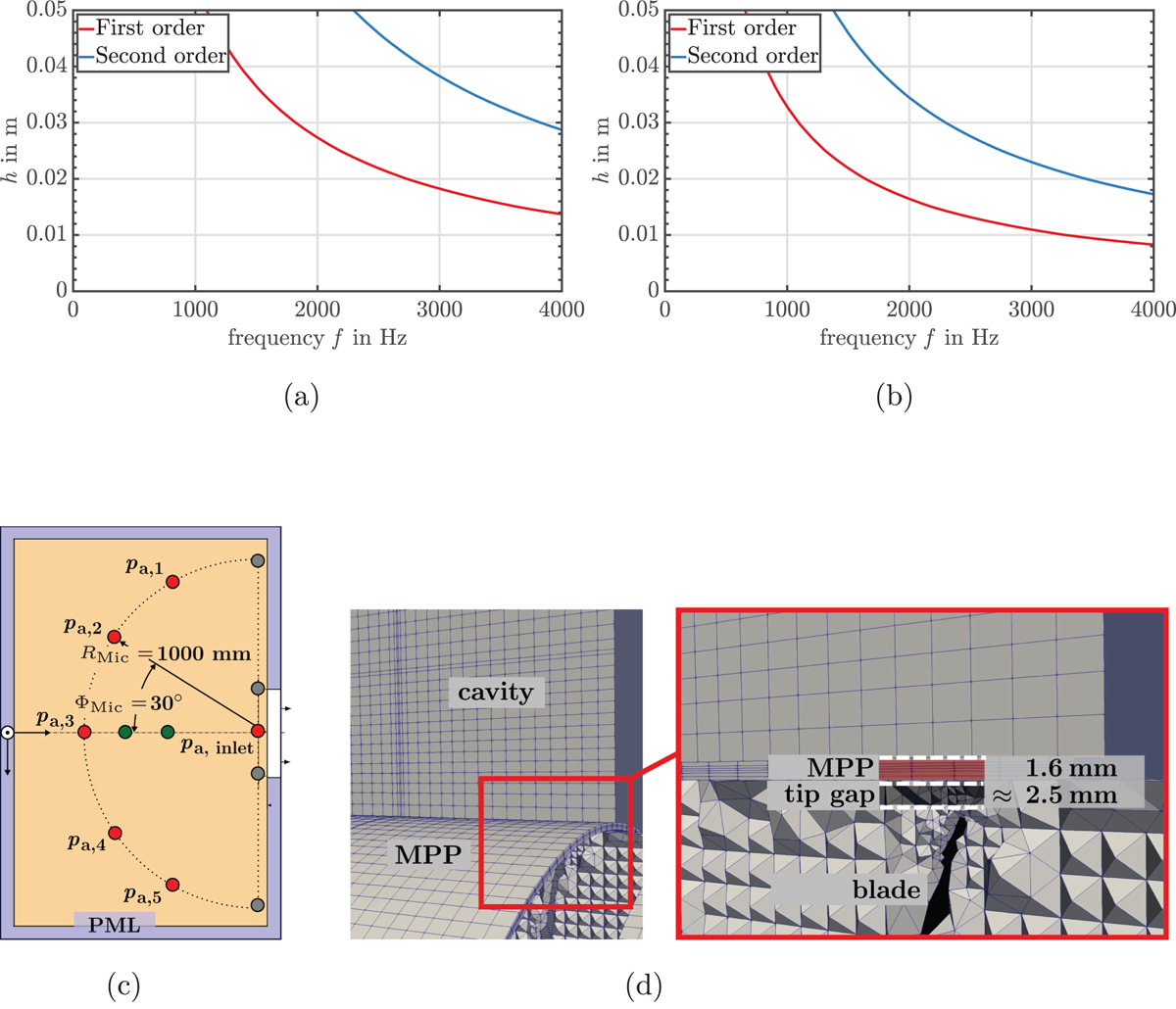

Discretization, monitoring points and enhanced view of MPP-cavity intersection. (a) hq-relation for air domain according to (6). (b) hq-relation for MPP domain at largest simulated frequency 1600 Hz with effective speed of sound of 205 ms−1. (c) Pressure monitoring points in measurement plane. (d) MPP volume region with cavity enhanced view of interfaces.
