Figure 8


Download original image

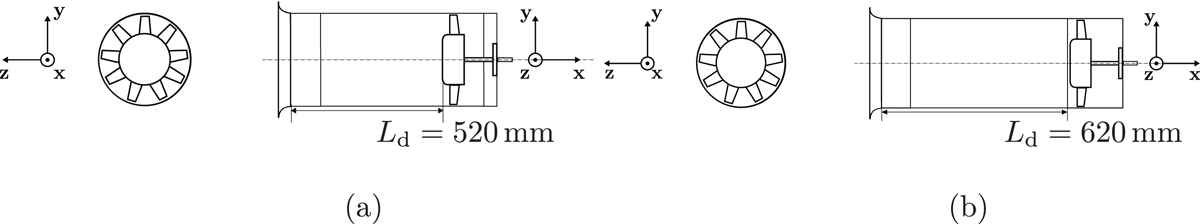

Schematic representation of the reference (R) duct design. F indicates that the inflow was undisturbed and S and L stand for the short Ld = 520 mm and long version Ld = 620 mm. (a) Reference short duct fan setup, RFS. (b) Reference long duct fan setup, RFL.
