Figure 9


Download original image

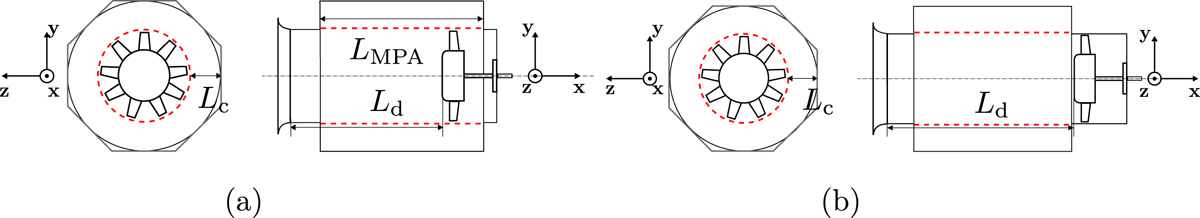

Schematic representation of the MPA duct design (M). Free inflow conditions (F) with long (L) as well as short (S) version (with the same length as in reference case); LMPA = 440 mm and indicated cavity length Lc, cf. [15]. (a) Short MPA fan duct setup, MFS. (b) Long MPA duct setup, MFL.
