Figure 2.
Download original image

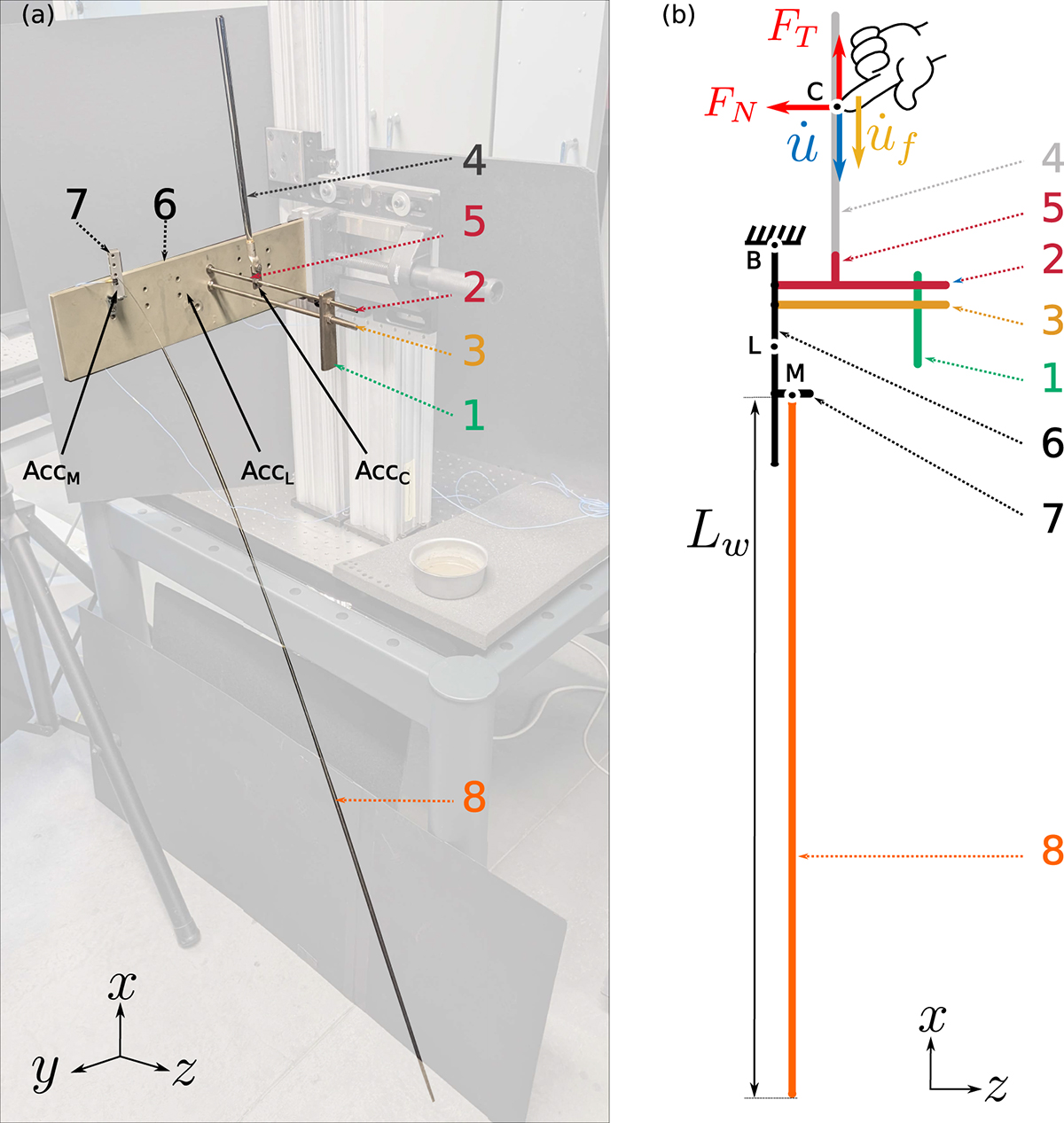

(a) Structure R1CW1 on the experimental bench with the position of the accelerometer. Name of the subsystems of R1CW1: 1-rectangular mass (plongeoir), 2-vibrating threaded shaft, 3-support threaded shaft, 4-glass rod,5-connection beam, 6-collector, 7-hanging beam, 8-whisker; (b) Assembly of beams 1 to 8 corresponding to the simplified cristal Baschet (structure R1CW1) used in the FE model.
