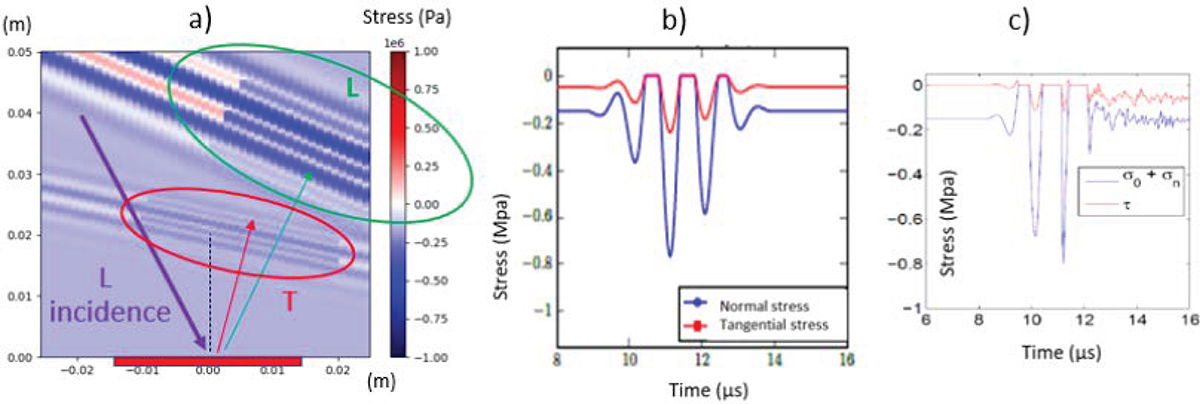

2D analytical simulation of the interaction of a longitudinal ultrasonic plane wave at 25° incidence with the normal to an interface with the bottom face fixed and including a crack of 30 mm length (represented by a red rectangle); (a): snapshot of the scattered field; normal and tangential stress as functions of time for the analytical model (b) and FEM model – Reproduced from [20] – (c).
