Figure 3

Download original image

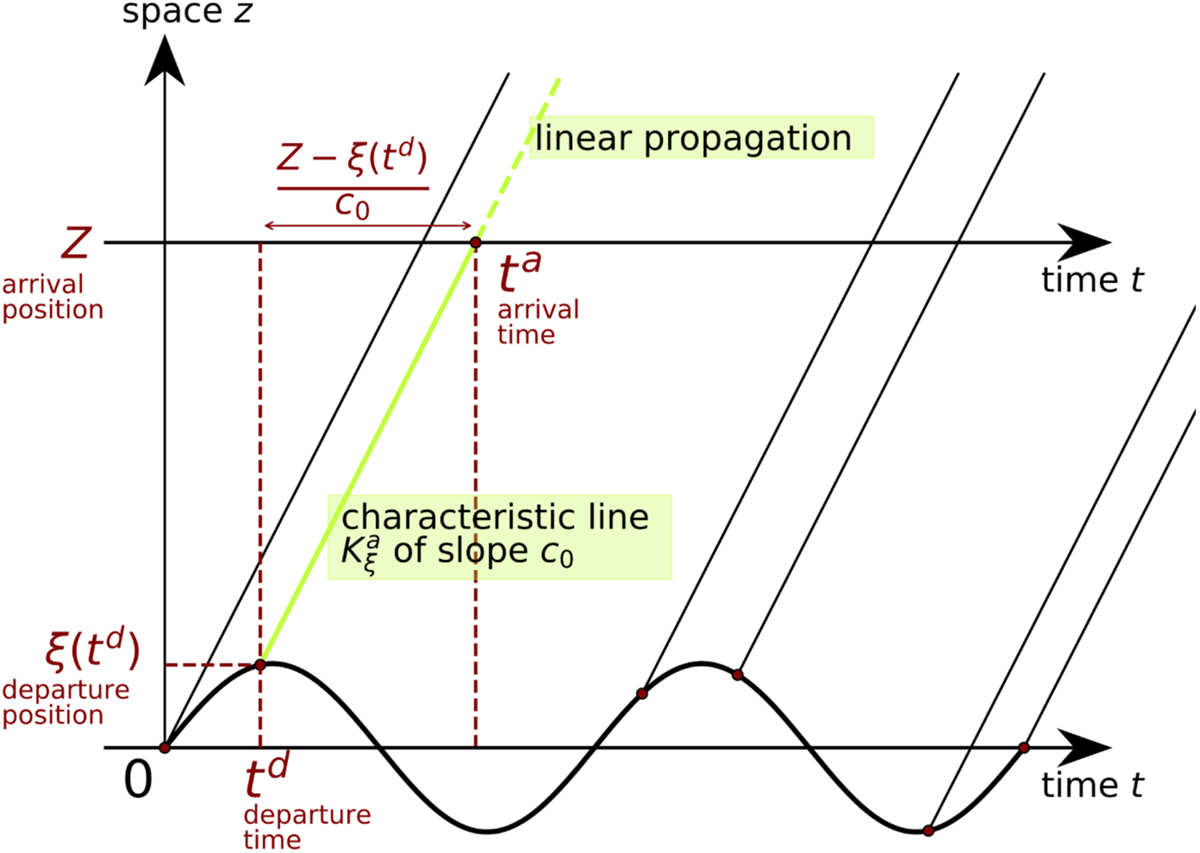

Illustration of the mapping from departure coordinates to arrival coordinates
through the characteristic line (described by
when
varies), for a sinusoidal piston motion. Note the variation in the propagation time
.
