Figure 7


Download original image

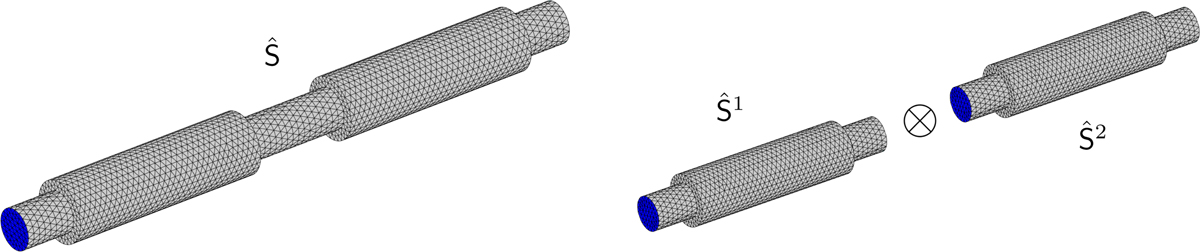

Illustration of an acoustic system with two ports (the FE mesh is represented). Scenario 1 (left) is referred to as “Monobloc” (in this example the length of the central duct is 10 cm) and scenario 2 (right) is referred to as “Chained”. Note the entrance of the system is identified by the blue color.
