Figure 3
Download original image

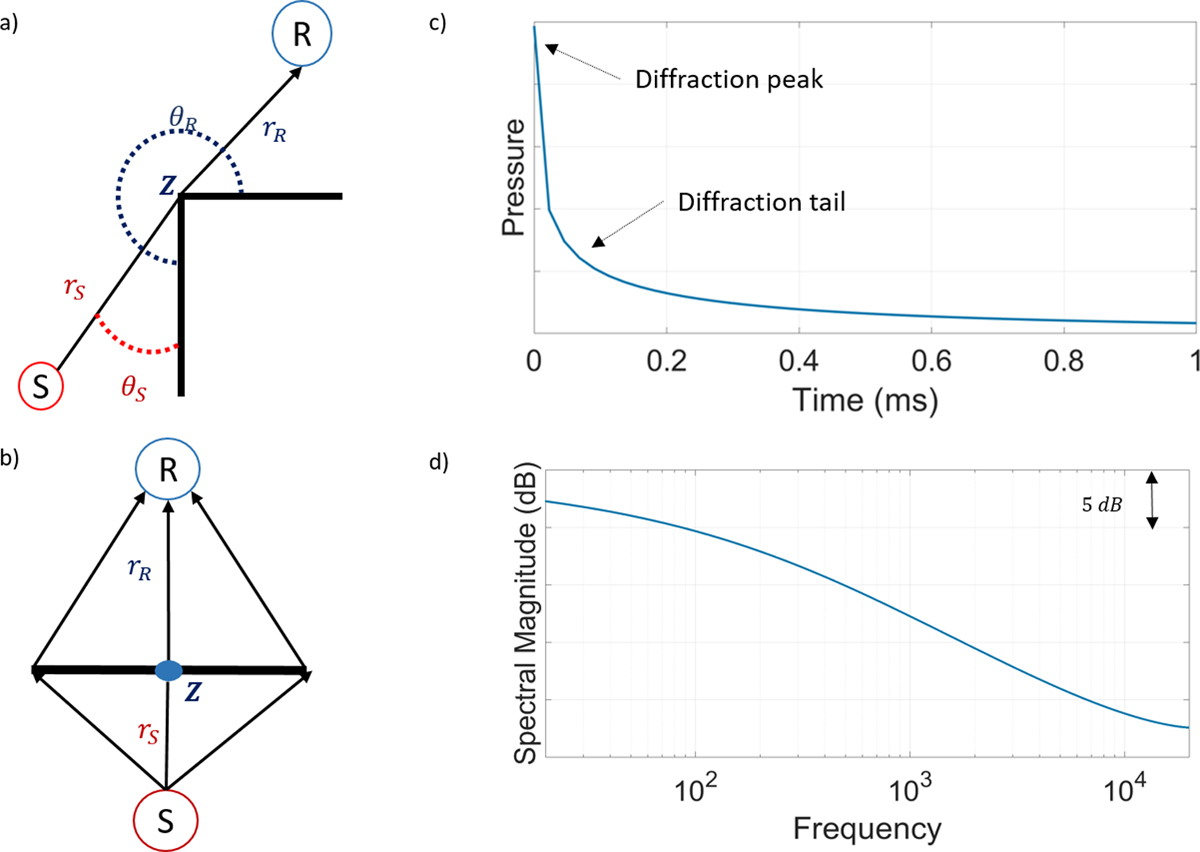

a) Side view of a typical diffraction wedge where Z denote the intersection point of the wedge, R is the receiver and S is the source. rr, rs are the distances of source and receiver from point Z and θr, θs the respective angles. b) top view of a typical diffraction wedge. c) Time domain diffraction kernel (first 1 ms) and d) frequency domain kernel profile.
