Figure 2
Download original image

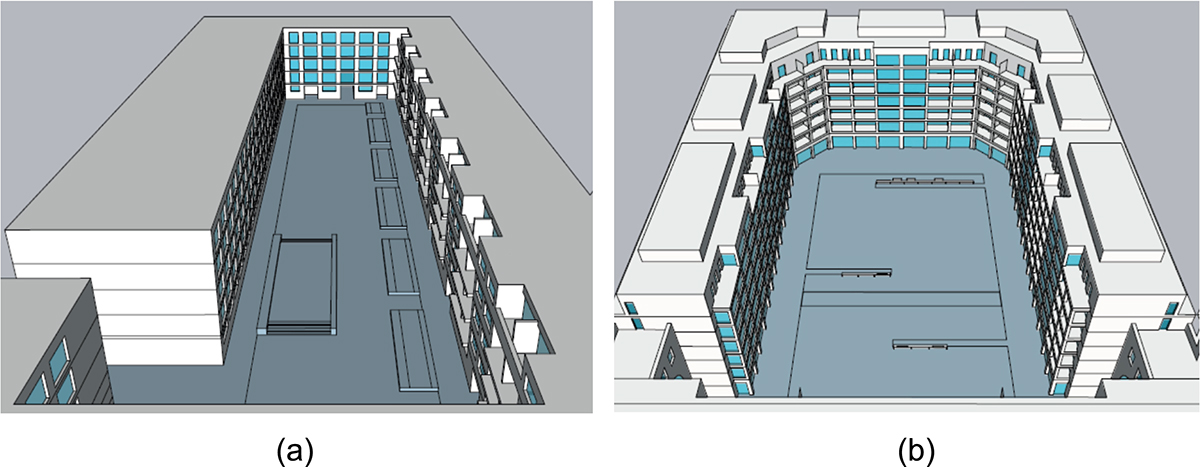

Two models of real courtyards. (a) model Z; Length 109 m, width 31 m, height 15 m, (b) model M; Length 70 m, width 42 m height 23 m. The width refers in both models to the main part of the inner courtyard, which in the drawing covers the largest area.
