Figure 13


Download original image

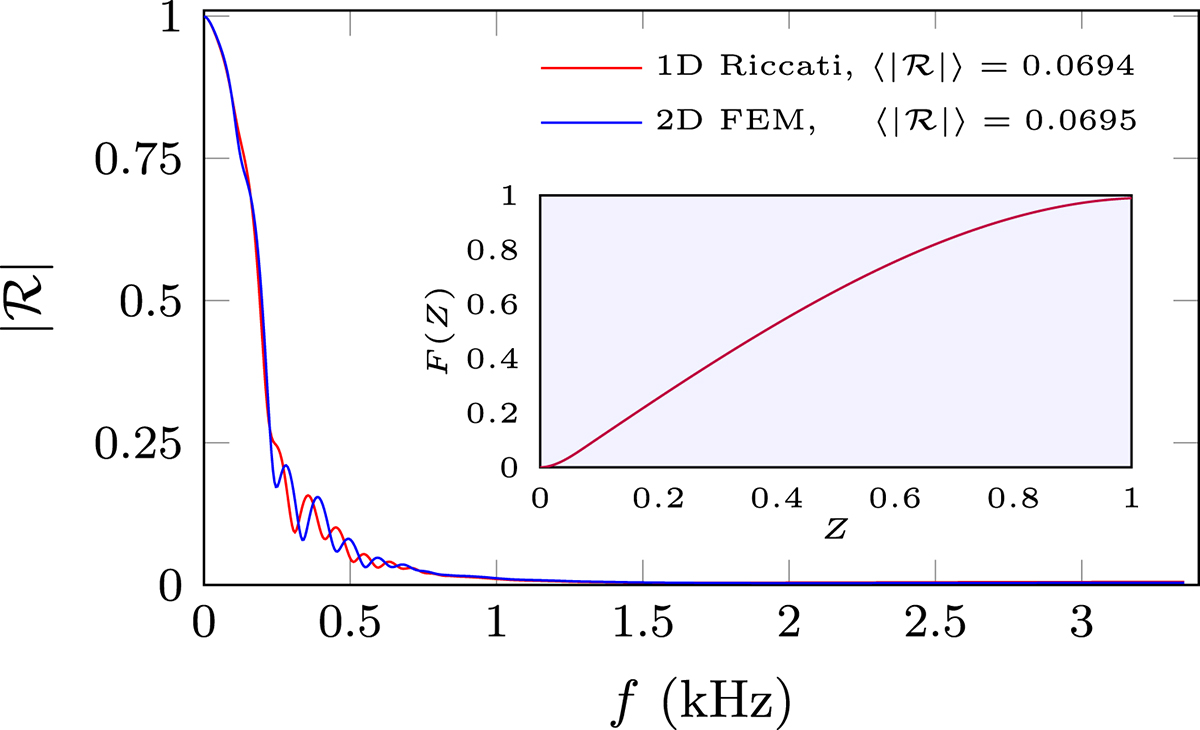

Reflection coefficient modulus spectrum of an ABH, for which its shape as well as the other parameters (L, Rmin, H, hrib) were optimized; red line–prediction employing the Riccati equation, blue line–validation employing the 2D FEM model. Inset figure shows the corresponding optimal shape function.
