Figure 2


Download original image

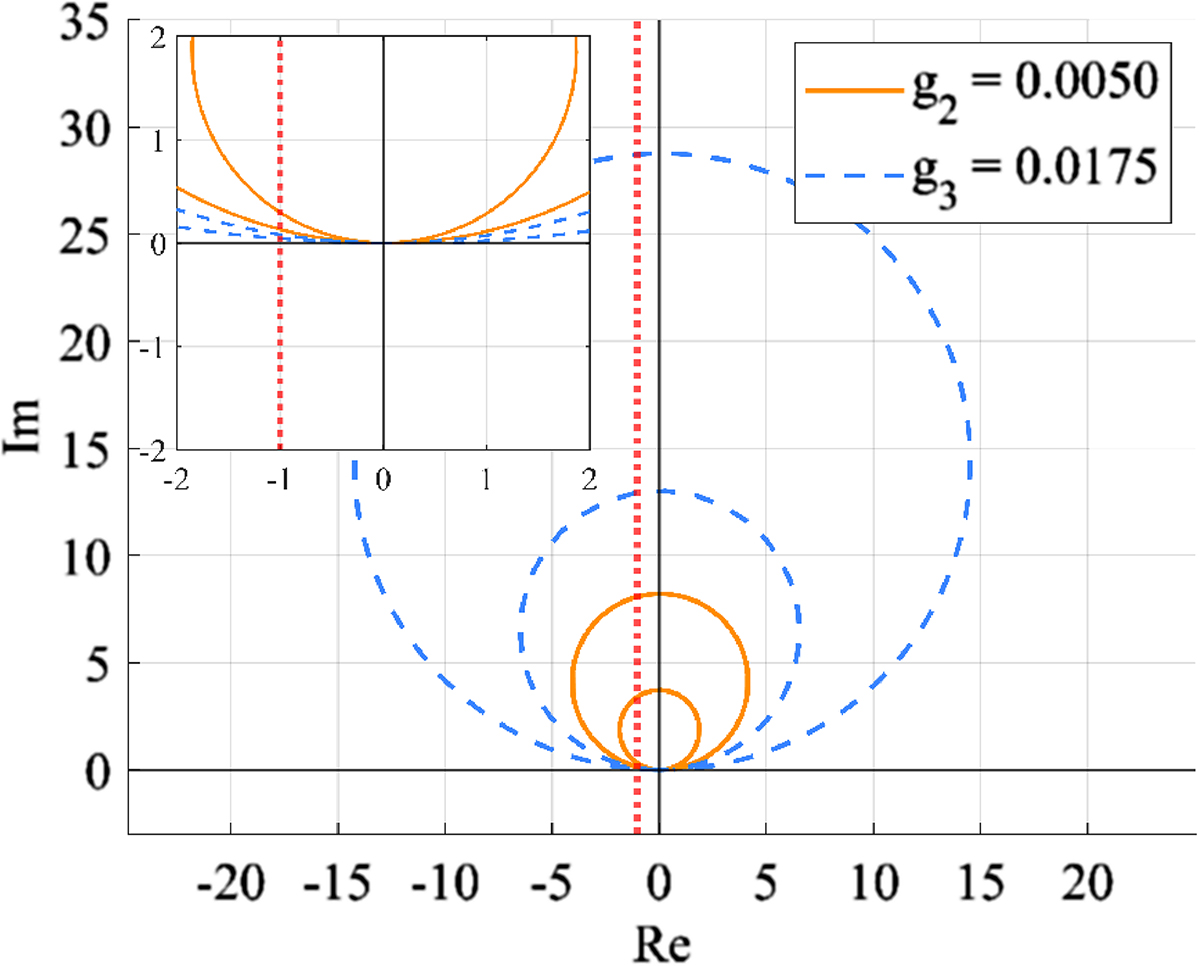

Nyquist plot of the open-loop sensor-actuator transfer function assuming the transducers are ideal. The contour never crosses the negative real axis meaning that the system is stable for all gains g of the feedback loop.
