Figure 10

Download original image

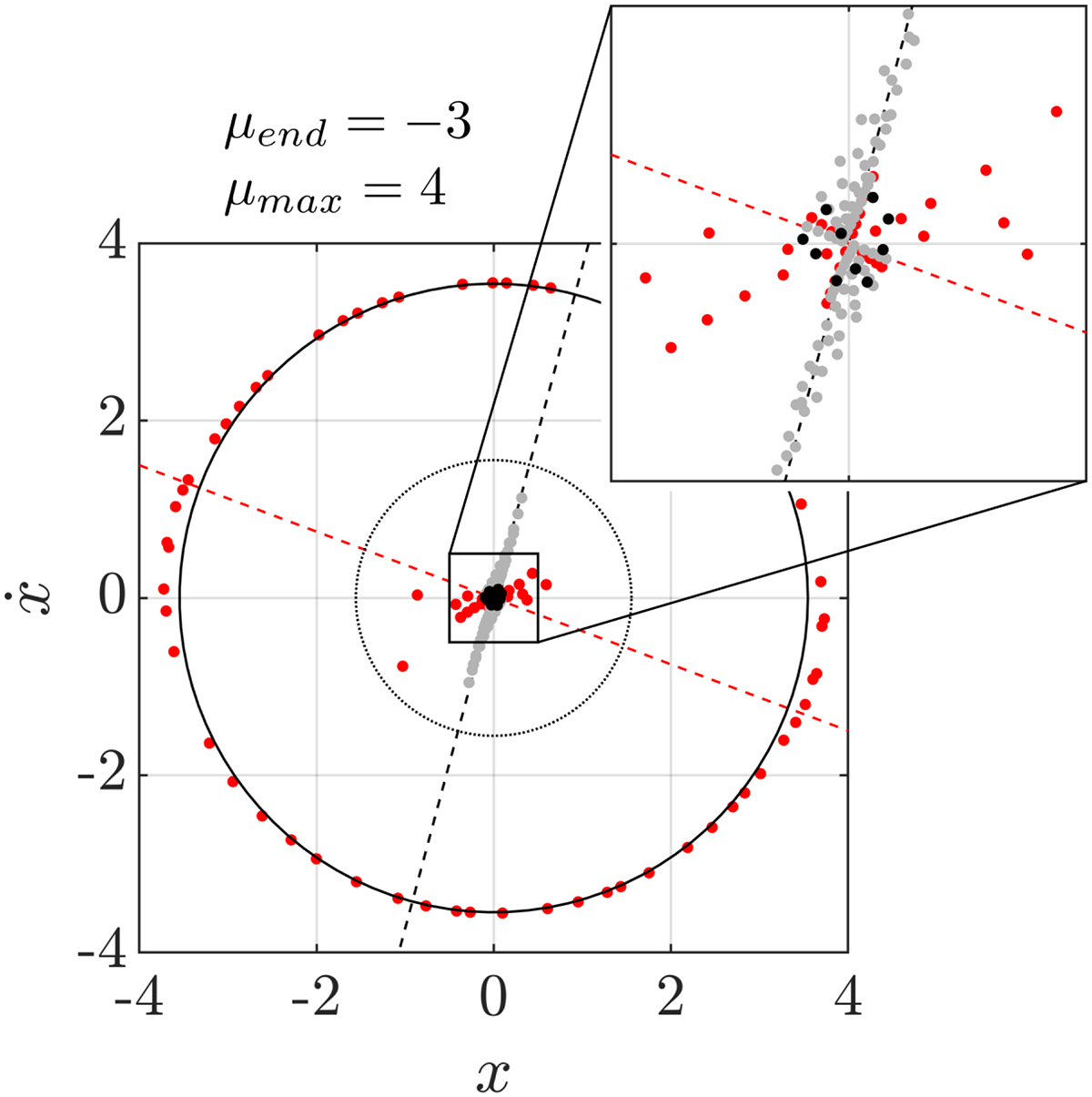

Example of a transient-informed distribution generated with 10 control scenarios of different durations. (•) Pre-initial Latin Hypercube of size N0 = 10; () states of the system when μ = μmax; (
) transient-informed distribution at the end of the attack. The black dotted line is the fast eigendirection of the equilibrium at μ = μmax and the red one is its slow eigendirection at μ = μend.
