Figure 14


Download original image

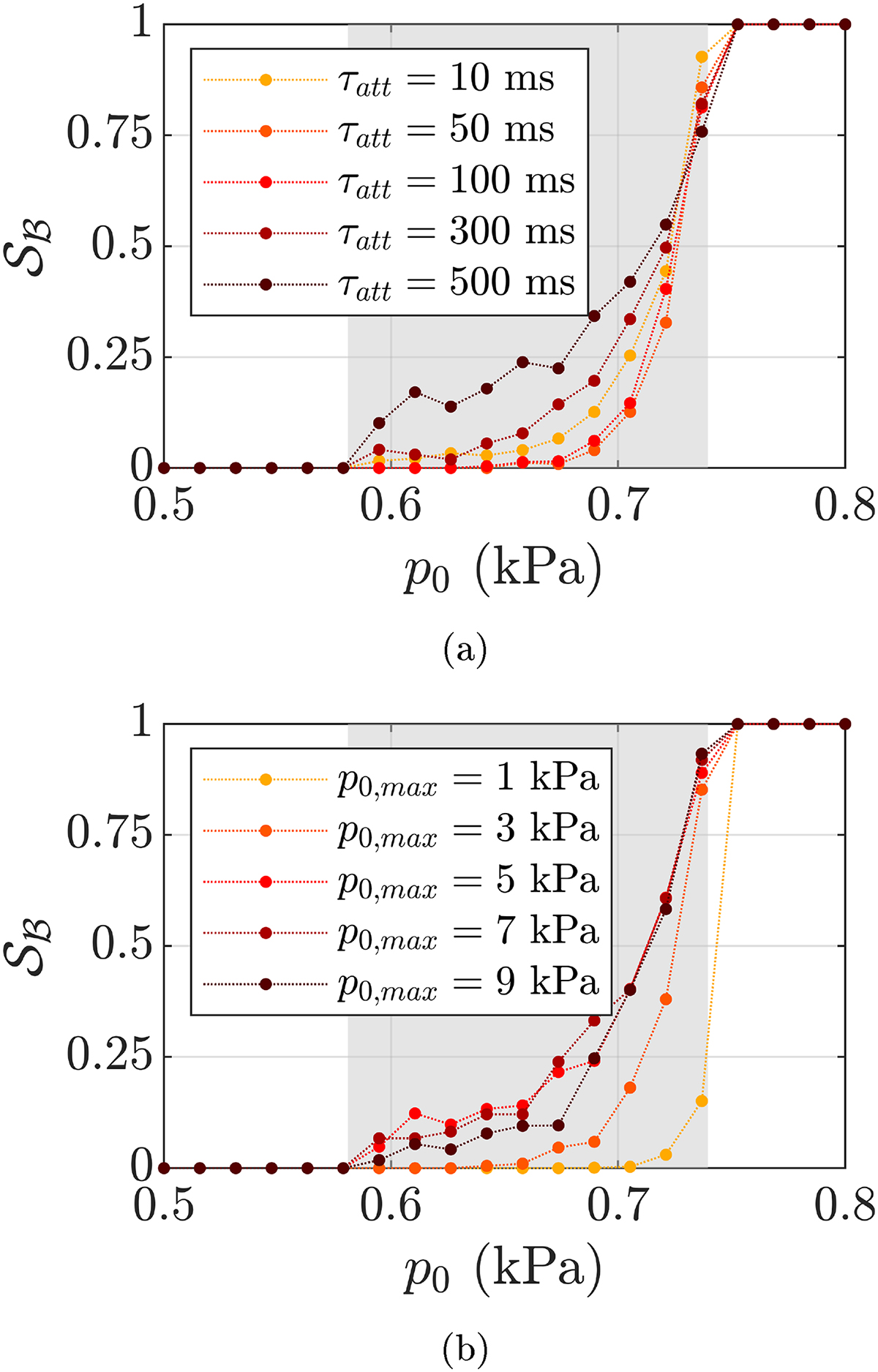

Basin stability of the trumpet model calculated with distributions Qtb$ {\mathcal{Q}}_{{tb}}$ of N = 1000 initial conditions based on attack transients (10 scenarios applied to each of the N0 = 100 pre-initial conditions). (a) Each curve corresponds to a specific attack duration τatt. (b) Each curve corresponds to a specific overshoot value p0,max. Only the basin stability of the periodic regime is shown.
