Figure 4.


Download original image

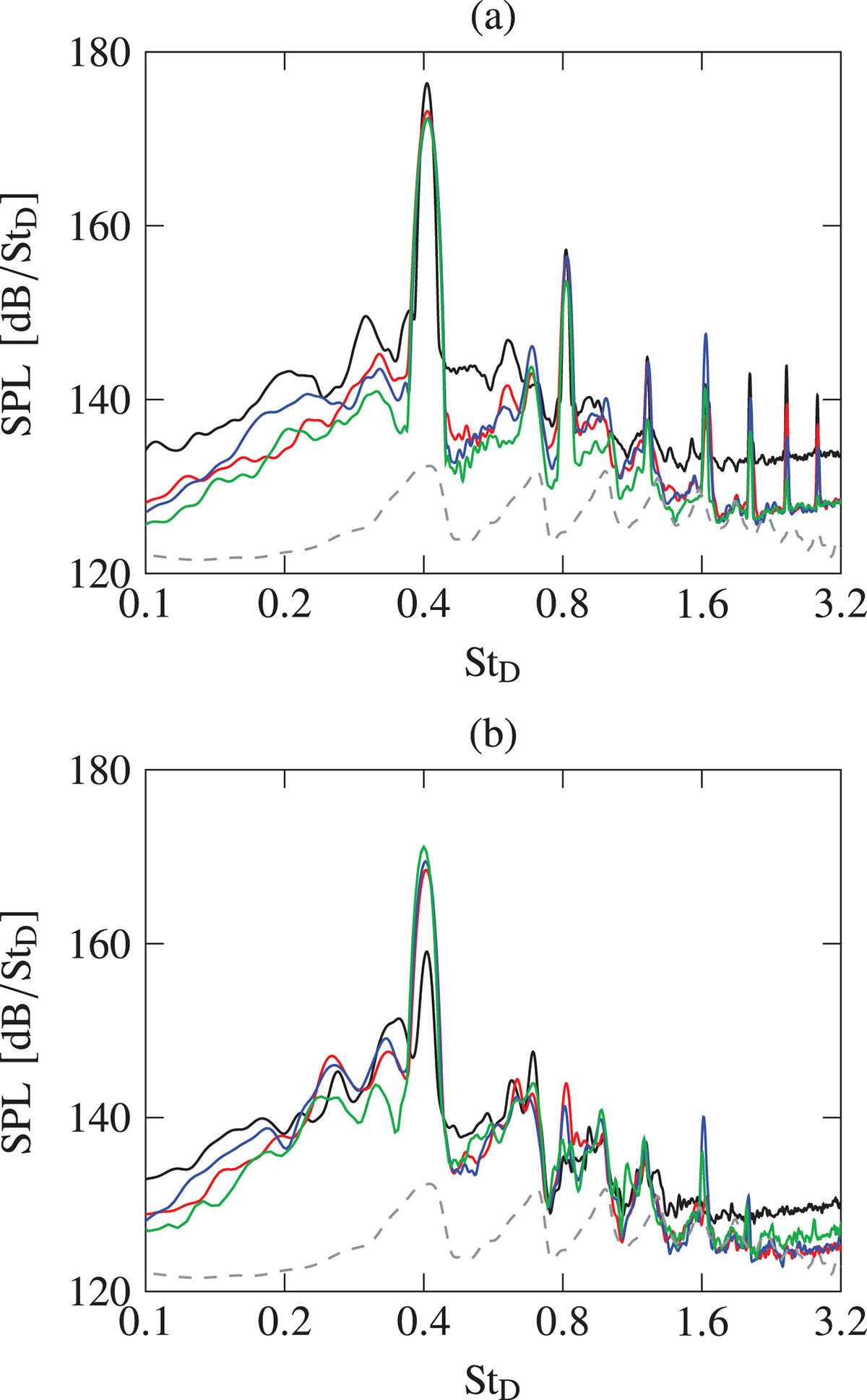

Sound pressure levels at z = 0 and r = 1.5r0 for (a) [0.1cm]8mm0.2mm L6T0%, red [0.1cm]8mm0.2mm L6T3%, blue [0.1cm]8mm0.2mm L6T6%, vert [0.1cm]8mm0.2mm L6T12% and (b) [0.1cm]8mm0.2mm L8T0%, red [0.1cm]8mm0.2mm L8T3%, blue [0.1cm]8mm0.2mm L8T6%, vert [0.1cm]8mm0.2mm L8T12%; gris [0.1cm]1.mm0.2mm [0.1cm]1.mm0.2mm [0.1cm]1.mm0.2mm [0.1cm]1.mm0.2mm SPL + 10 dB at z = 0 and r = 1.5r0 for the corresponding free jet [18] with TBLtrip = 9%.
