Figure 5.
Download original image

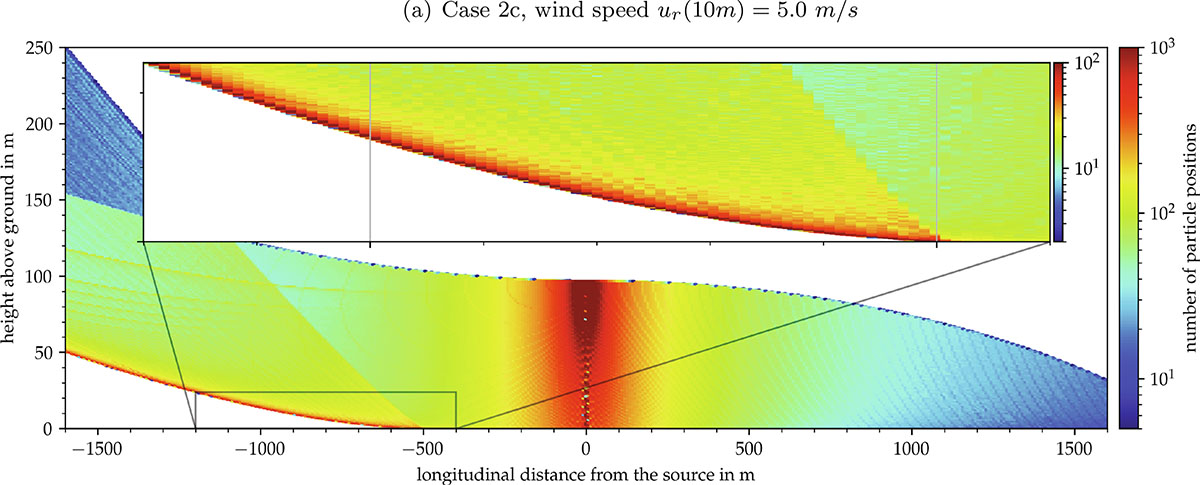

Distribution of particle positions for test case 2c (note the a logarithmic scale!). One can clearly recognize the downward- and upward refraction in the downwind- and upwind domain, respectively. Along the boundary of the shadow zone in the upwind domain a significantly increased number of particle positions can be observed. (a) Case 2c, wind speed u r (10 m)=5.0 m/s.
