Figure 12


Download original image

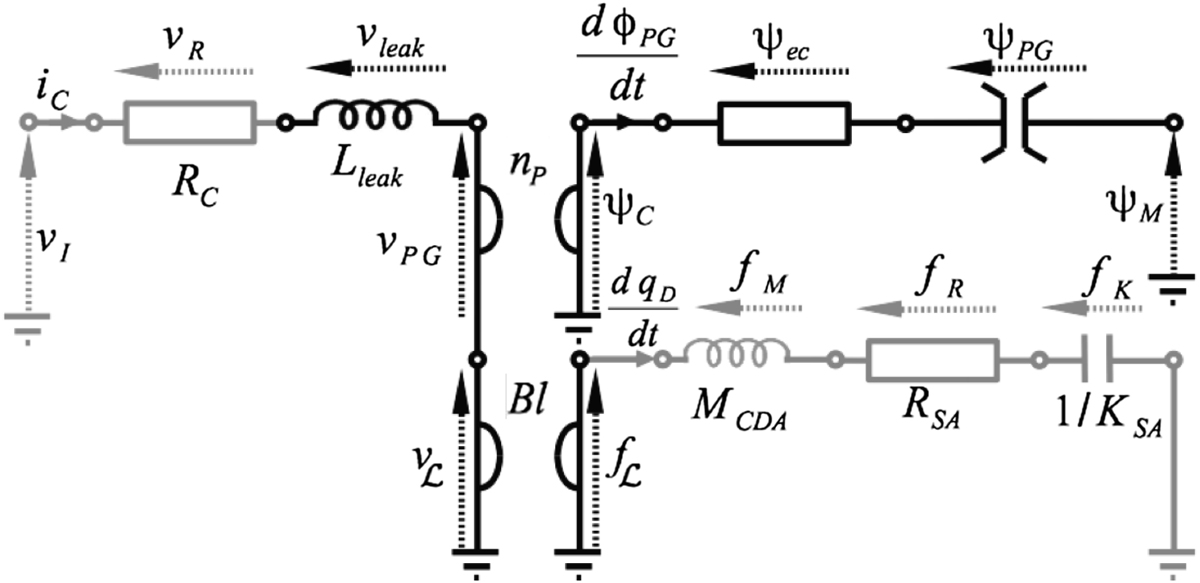

Equivalent circuit of the model 2 described in Table 4. Elements common to model 0 in Figure 2 are shaded. The coil inductance LC is replaced by the electromagnetic circuit from Figure 10b which includes the leakage inductance Lleak and the magnetic path (pole piece P and air gap G).
