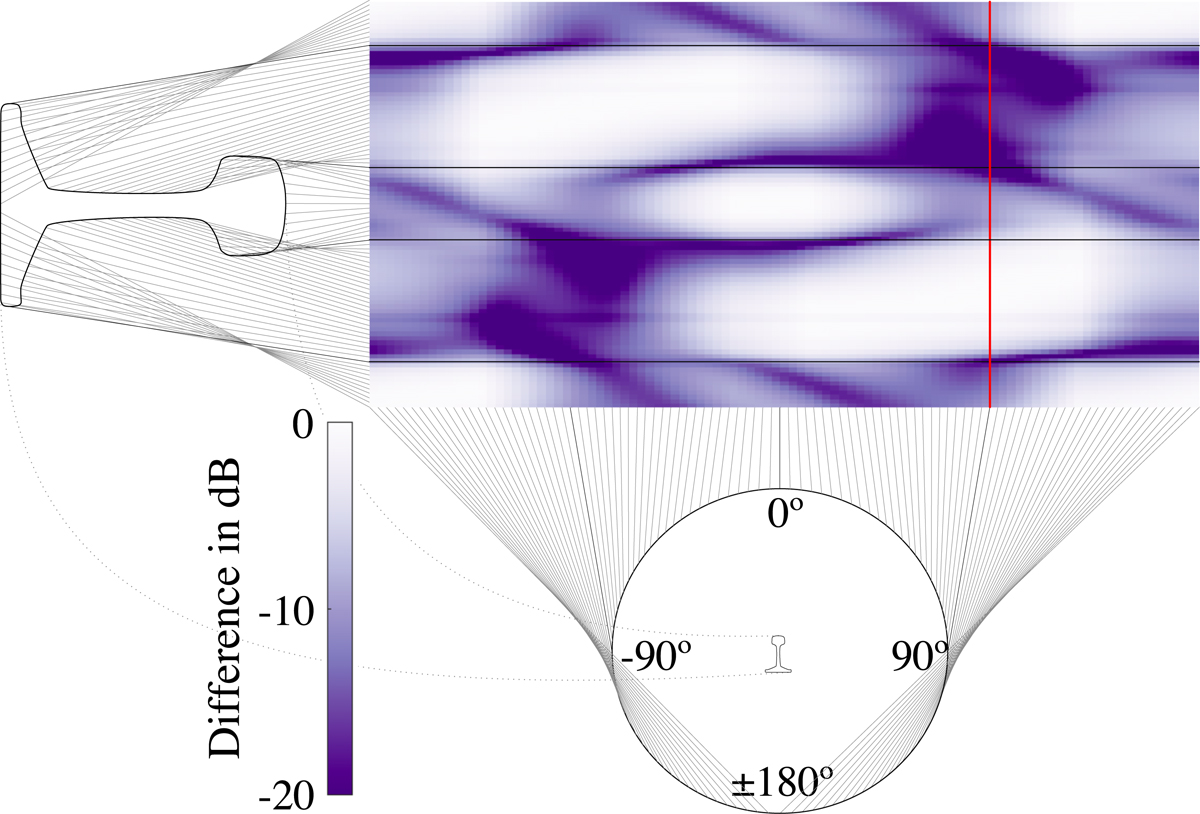

Transfer function magnitude between each source element on the rail and receiver point on a circle with 20 m radius around the the rail. The displayed transfer functions are calculated at 1100 Hz, which is typically close to the pinned-pinned frequency. The receiver angle 0° corresponds to a position vertically above the rail and increasing numbers indicate clockwise rotation.
