Figure 5


Download original image

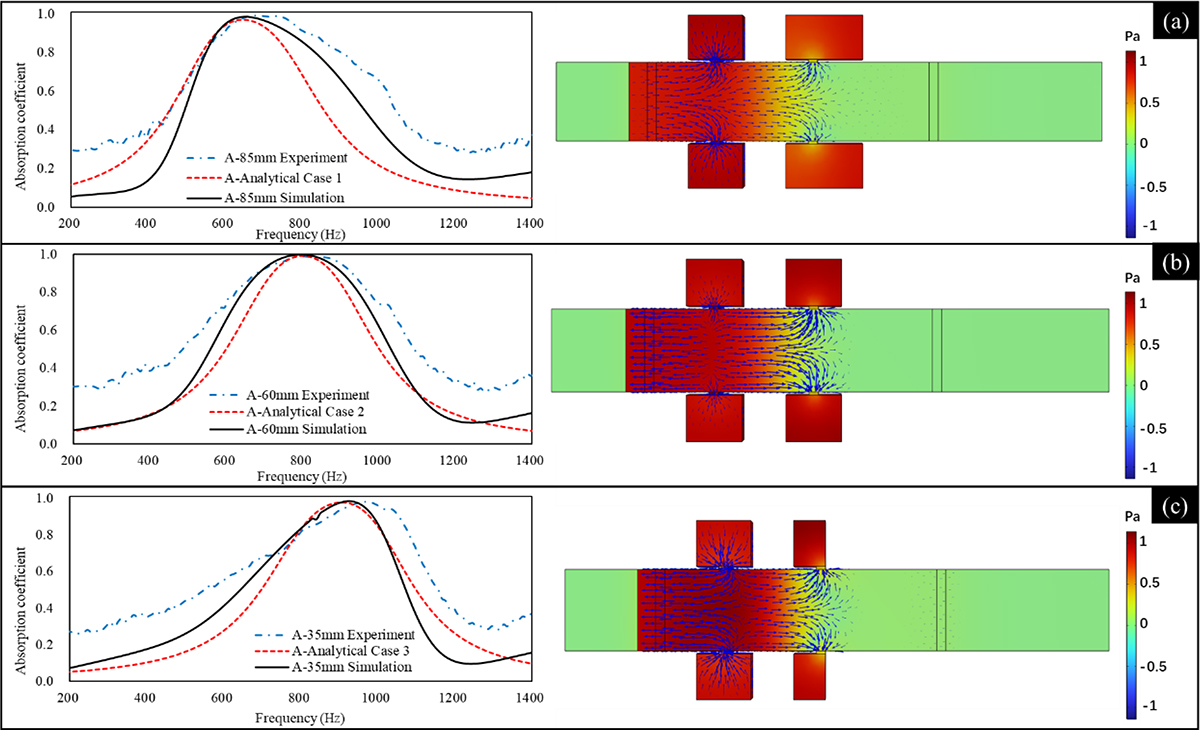

The sound absorption coefficient of analytical, numerical, and experimental results of silencer’s reflector defined in different dimensions: (a) 85 mm, (b) 60 mm and (c) 35 mm. The right inset figures reveal the sound pressure field (colour map) and air velocity (arrow) of the model at peak absorption frequencies.
