Figure 9
Download original image

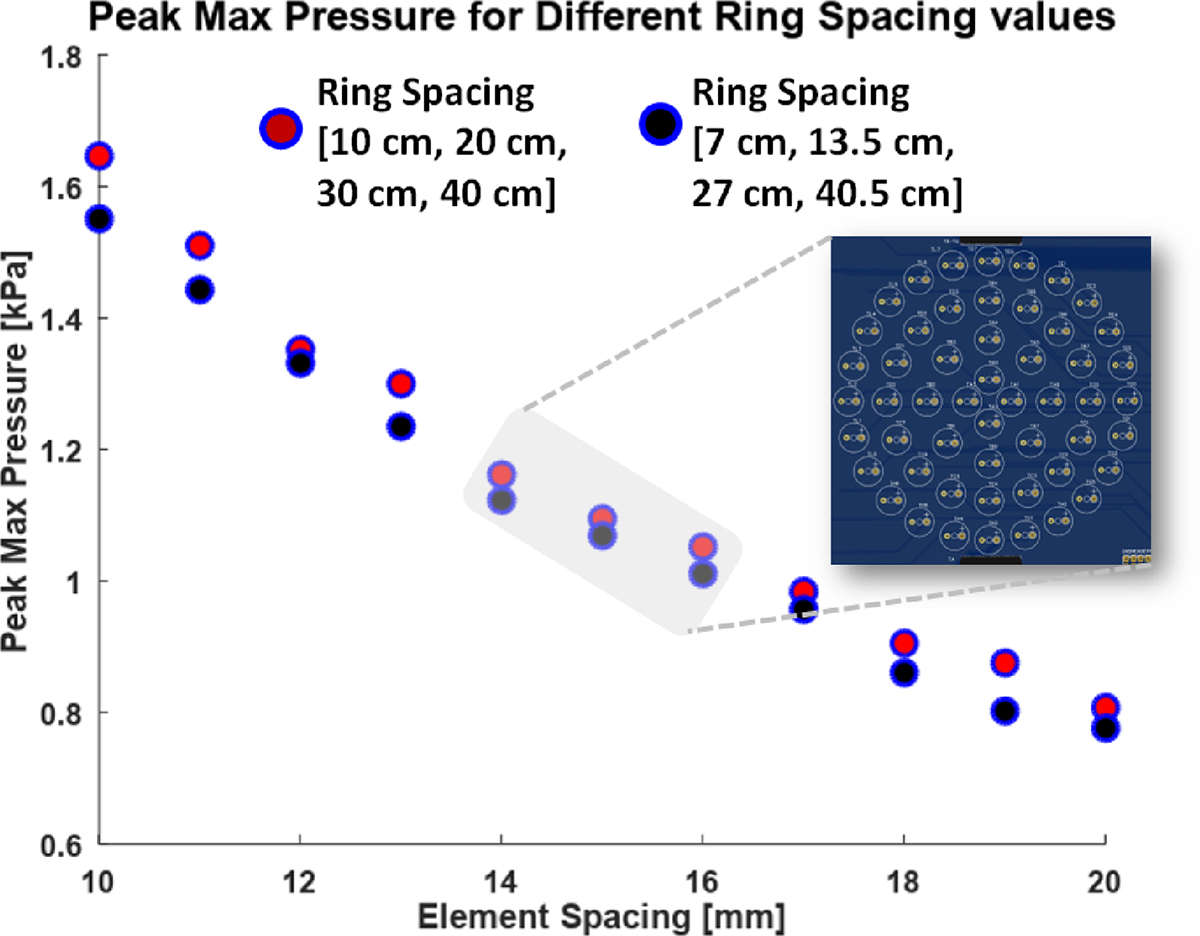

The peak max pressure value obtained from the data shown in Figure 8 for uneven ring to ring spacing compared to even ring to ring spacing values: the element to element spacing between 14 and 16 mm exhibits a good match between the two types of rings. Here, the highlighted spacing values were chosen in the PCB layout shown in the inset.
