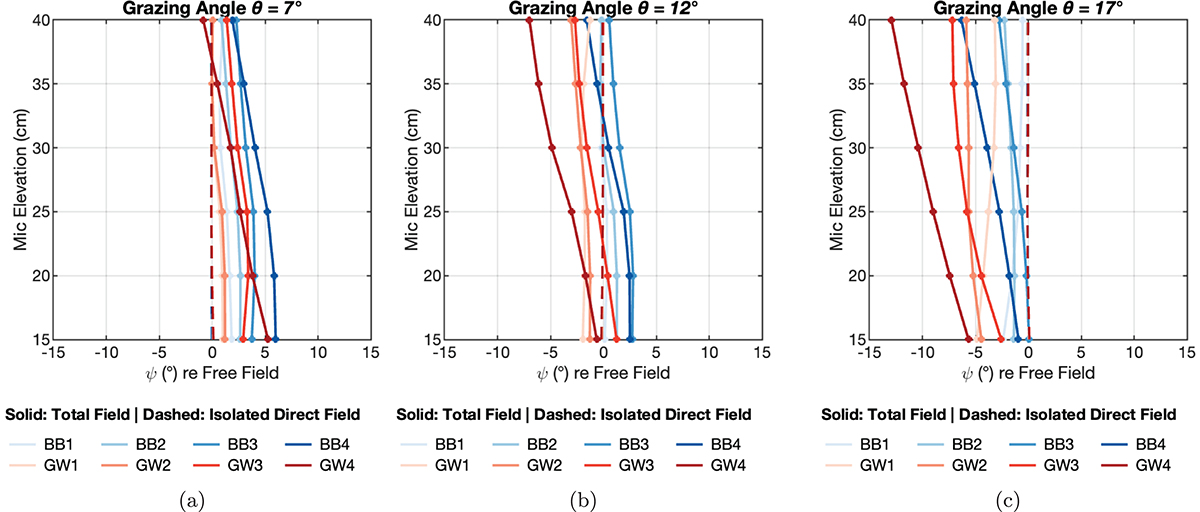

Figure 14.
Download original image
Relative deviation of the local propagation angle with respect to the free-field reference, shown as a function of microphone elevation for three representative grazing angles. Results are presented for all material configurations. Solid lines denote the total sound field, while dashed lines correspond to the isolated direct field.
