Figure 17


Download original image

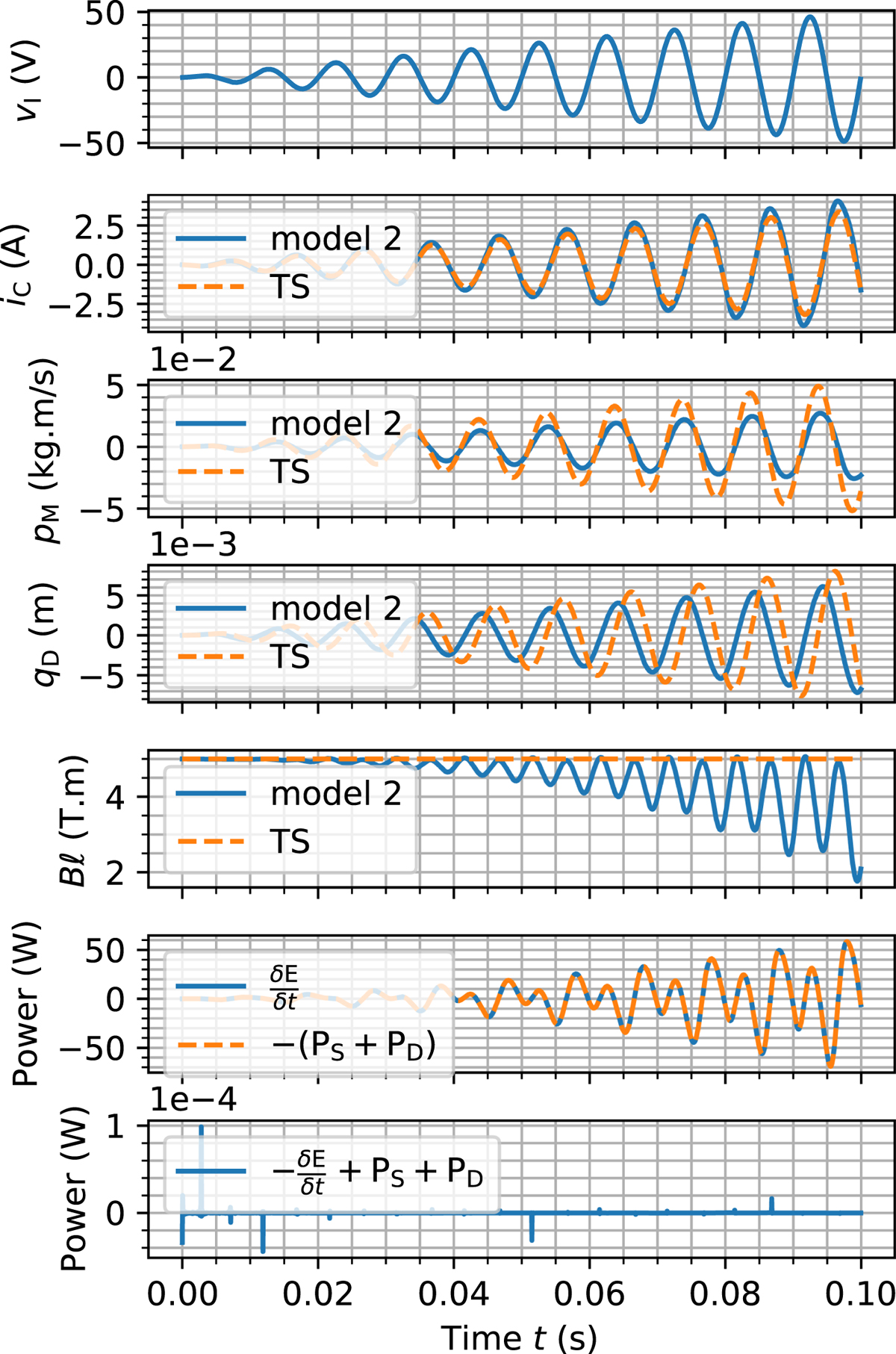

Simulation of the model 2 in Table 4 depicted in Figure 12, for the parameters in Tables D1 and D3. The input voltage is a 100 Hz sine wave with increasing amplitude between 0 V and 50 V. The sampling rate is 96 kHz. The power balance is shown for the model 2 only. The force factor corresponds to the product of the induction in air gap bG from (14) with position-dependent effective length from (24).
