Figure 6


Download original image

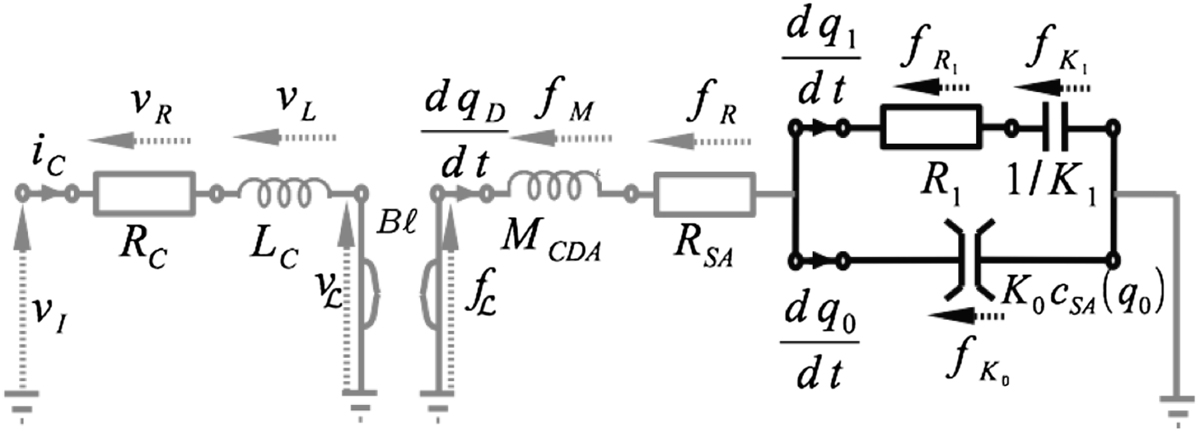

Equivalent circuit for model 1 with diaphragm position qD, primary elongation q0 and creep elongation q1. Elements common to model 0 in Figure 2 are shaded.
