Figure 16
Download original image

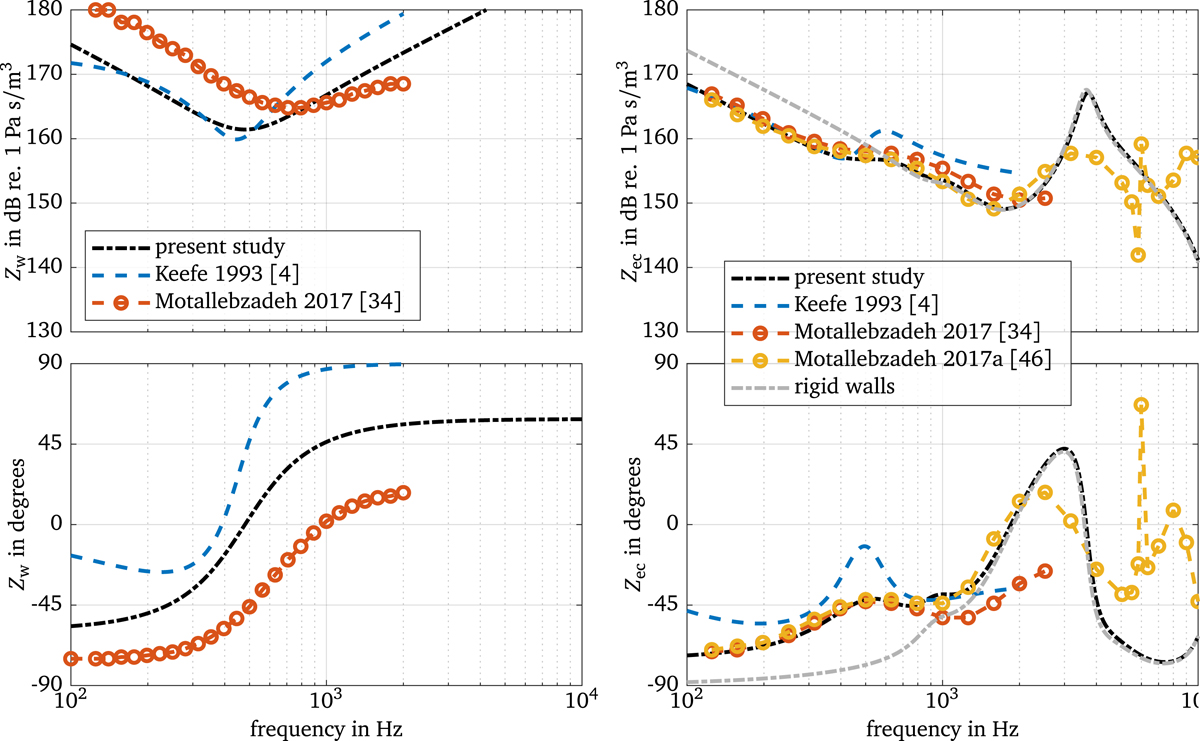

Ear canal wall impedance Zw (left) and input impedances of the ear Zec (right) resulting from the models of the present study with aec = 1.9 mm, Lec = 8.5 mm (black), according to [4] (blue), according to [34] (red), and according to [46] (yellow). Additionally, Zec resulting from the models of the present study assuming rigid ear canal walls is depicted (gray).
