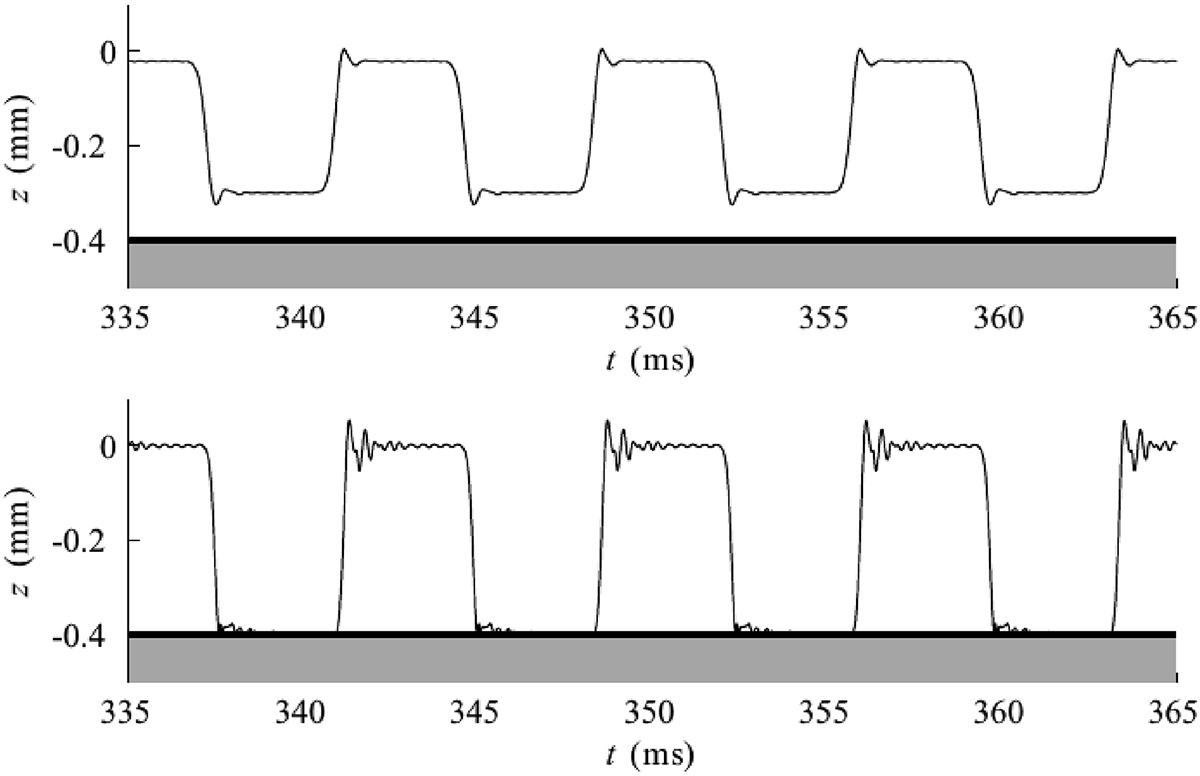

Simulation of the self-sustained oscillations of a clarinet assuming the reed is a SDOF system and considering a force term due to the collision between the reed and mouthpiece lay [25]. Top: steady-state oscillation of the reed position without beating against the lay (illustrated as a grey region at y = −0.4 mm). Bottom: reed position under a higher pressure illustrating beating effects.
