Figure 7
Download original image

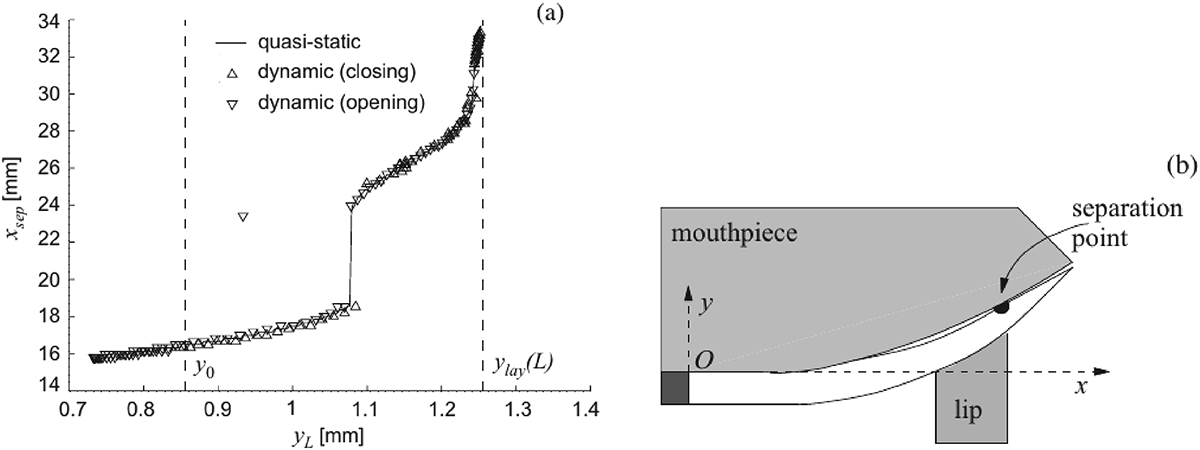

Separation point versus tip displacement [47]; (a) quasi-static simulations (black solid line) and dynamic simulations (yL is defined as the displacement of the reed tip and xsep as the point of contact between the lay and the reed which is closest to the tip), (b) non-smooth reed curling.
