Figure 3
Download original image

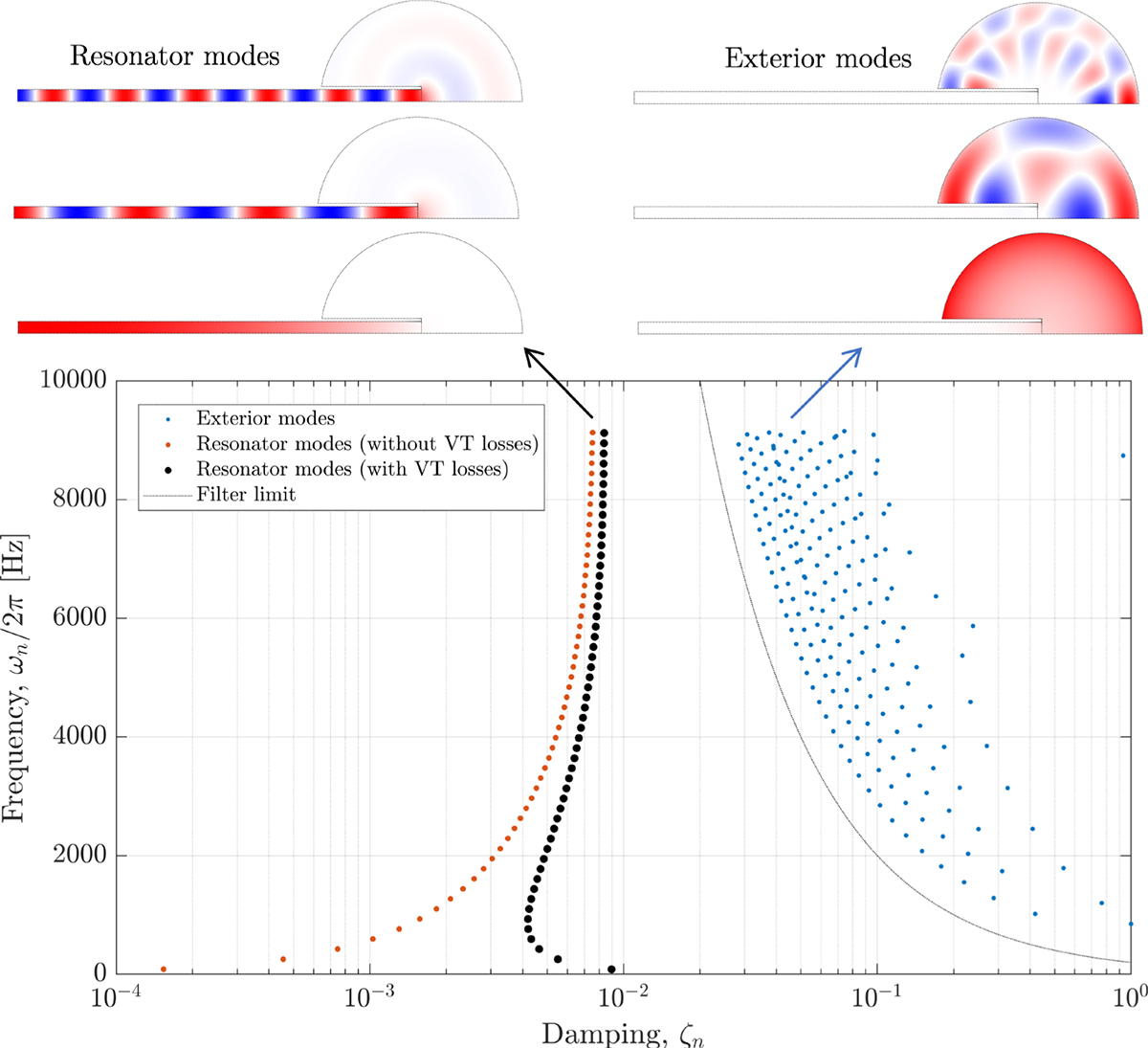

Eigenvalues of a system composed of a meter-long cylinder in the ω n − ζ n plane. The top plots show the modes shapes associated to each family: the trapped/resonator modes (left) and the exterior field modes (right).
