Figure 5
Download original image

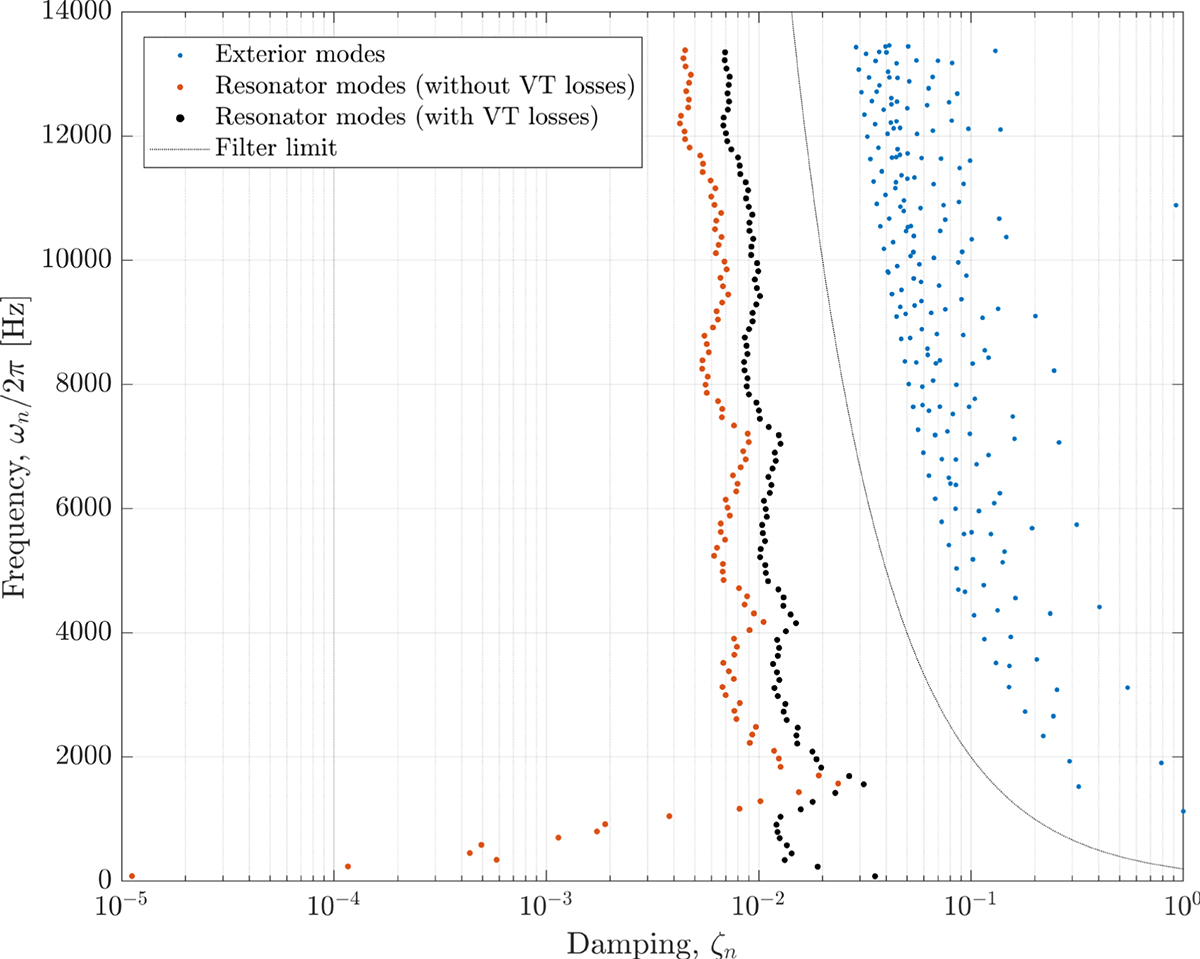

Distribution of eigenvalues, in the ω n − ζ n plane, resulting from the model of the simplified trumpet. Blue dots denote exterior modes, that are removed from the modal basis, red dots denote the eigenvalues from a system with radiation losses only and black dots the eigenvalues for a system with both radiation and viscothermal losses.
